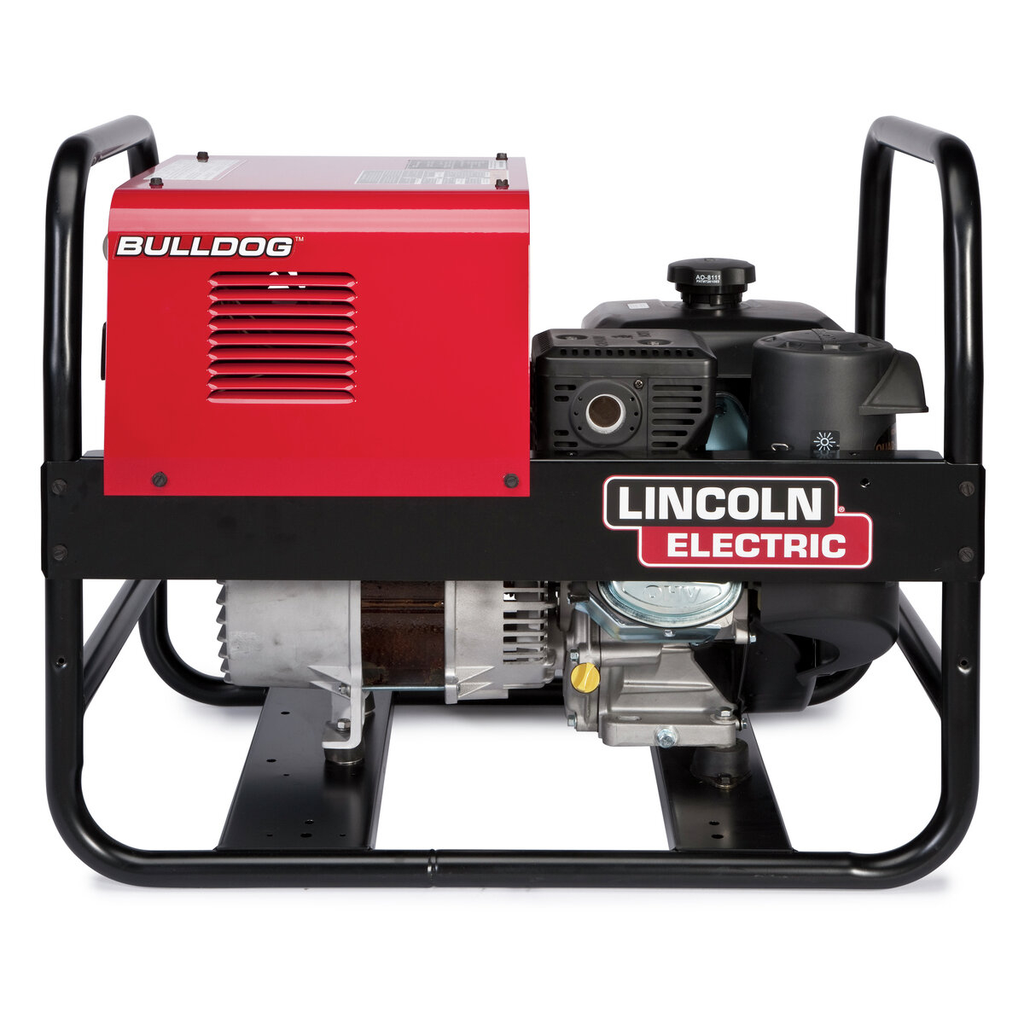

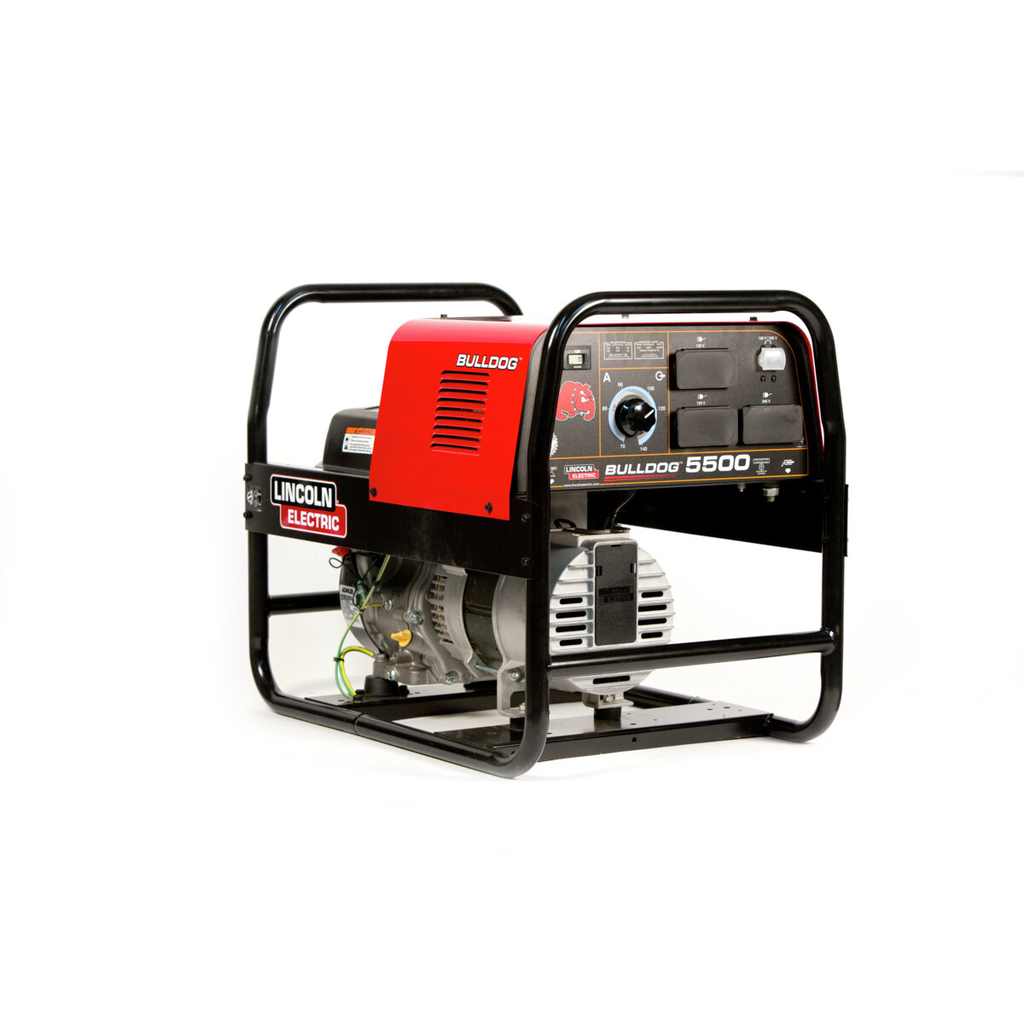

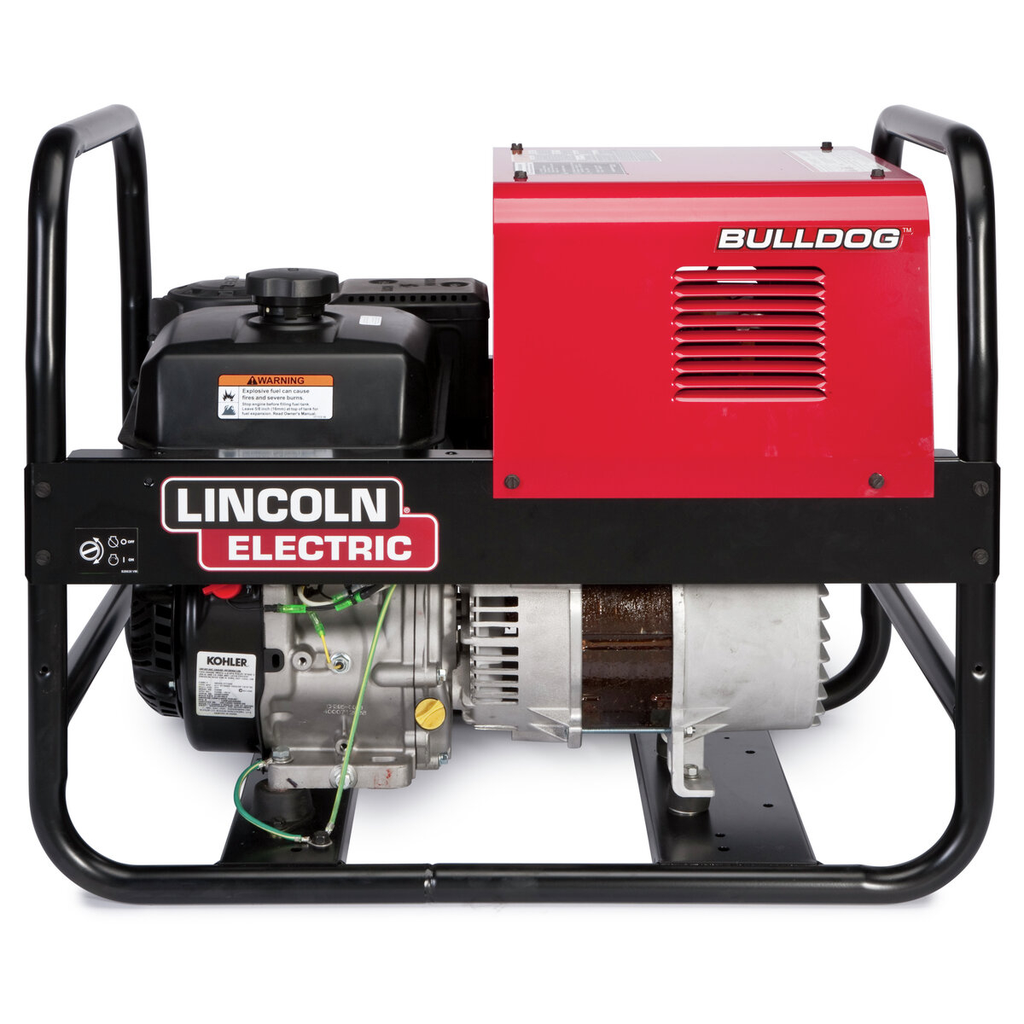

Bulldog® 5500 Engine Driven Welder (Kohler®)

Name: Bulldog® 5500 Engine Driven Welder (Kohler®)
Brand: Lincoln Electric
SKU: LNCK2708-2
Price: 4430.4 USD
Availability: PreOrder

Locations: In Stock Call for Availability

Item Code: LNCK2708-2

Category Engine Drive Welding Systems

Description

Portable AC Welder/AC Generator - It’s great for hobbyists and anyone who needs portable AC stick welding and AC generator power! Dependability and long life aided by all-copper windings in rotor and stator with high quality insulation. Red and black powder paint finish offers increased durability with added protection from rust and corrosion. Also ultraviolet resistant to better retain color and gloss. Manufactured under a quality system certified to ISO 9001 requirements and meets U.S. EPA EVAP standards for reduced emissions of gasoline vapor.

Specifications

Amperage : 70-140 amp
Auxiliary Output Voltage : 120/240 volt
Brand : Lincoln Electric
Case Type : Painted
Category : Engine Drive Welding Systems
Compliance Type : CSA Certified
Continuous Generator Power : 4000 watt
Country Of Origin : United States
Dimensions : 25.6 x 21.8 x 31.5 in
Displacement : 16.9 cu in
Engine Brand : CH395
Engine Specification : 1 Cylinder Air Cooled Gasoline Engine, Carburetor
Frame Diameter : 1-1/4 in
Fuel Consumption : 0.31 gal/hour
Fuel Tank Capacity : 1.9 liter
Generator Output Current : 16.7 amp
Horsepower : 3600 rpm
Oil Capacity : 1.1 liter
Output Mode : CC
Polarity : AC
Receptacle Type : NEMA 5-20R
Surge Generator Power : 5,500 watt
Weight : 198 lb
Welding Mode : Cc-Stick (SMAW)
Welding Output Current : 100 Amp
Welding Technology : Conventional
