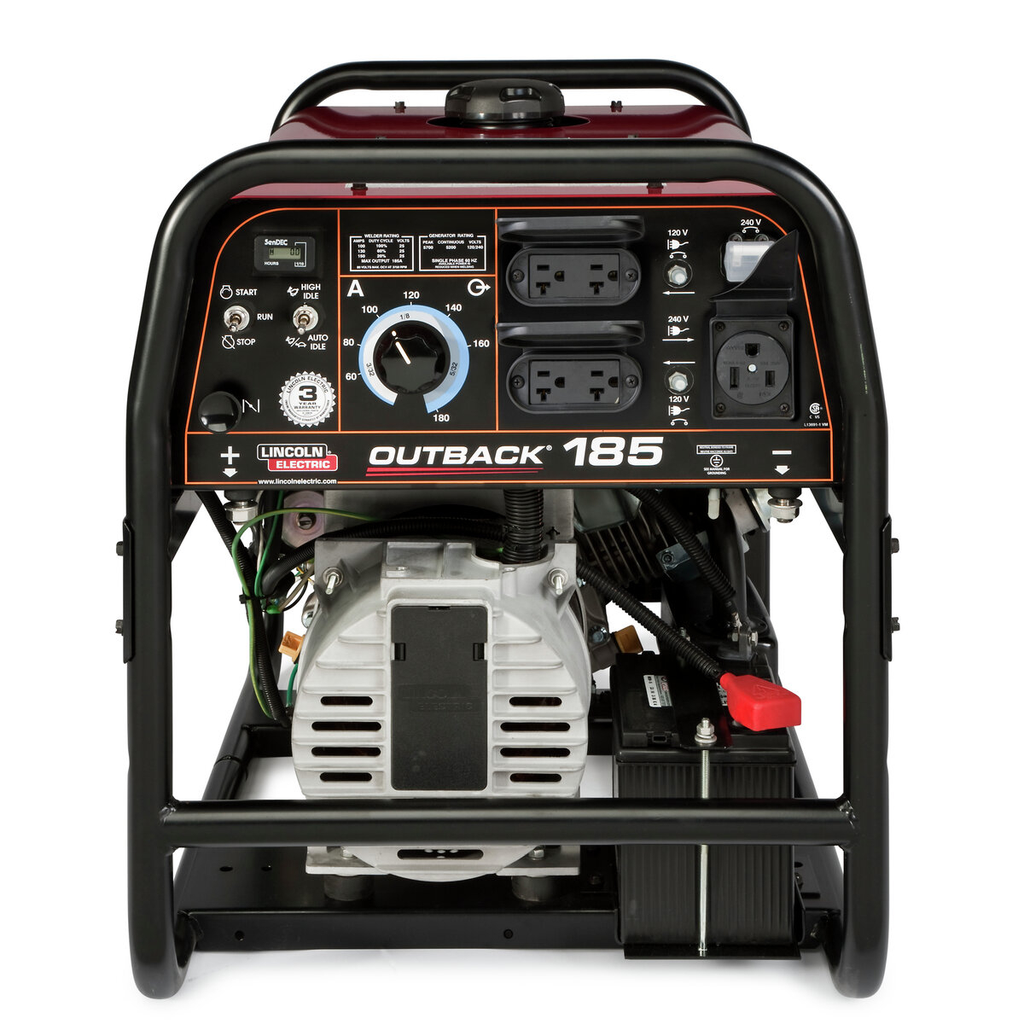

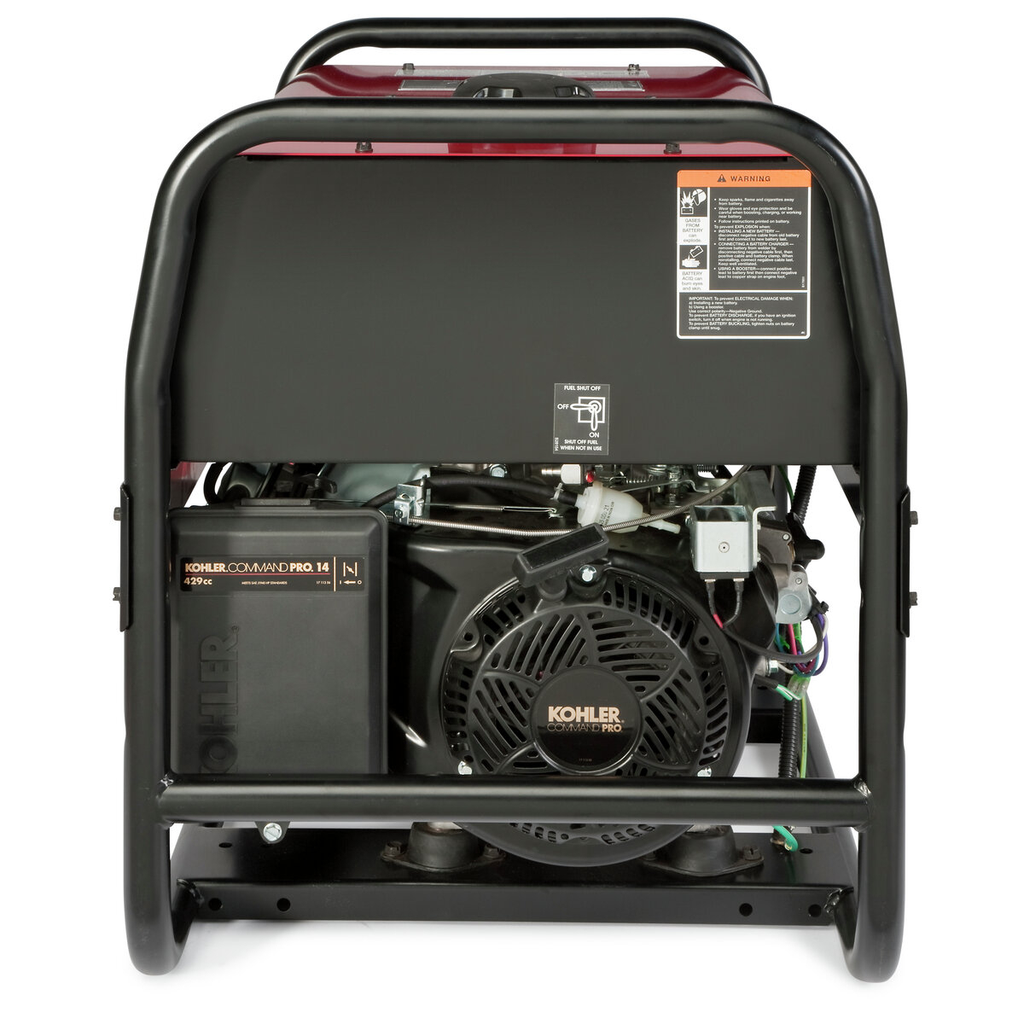

Outback® 185 Engine Driven Welder (Kohler®)

Name: Outback® 185 Engine Driven Welder (Kohler®)
Brand: Lincoln Electric
SKU: LNCK2706-2
Price: 6662.99 USD
Availability: PreOrder

Locations: In Stock Call for Availability

Item Code: LNCK2706-2

Category Engine Drive Welding Systems

Description

Built for the Outdoors!™ Great for anyone who needs portable DC stick welding and AC generator power! The Low-Lift™ grab bars on both ends make lifting the Outback® 185 on and off truck beds easy. The compact Outback® 185 is easy to start with all engine controls on the front of the machine, and it’s easy to use for welding. Use the AC generator power for a variety of applications described below with the large 6.8 gallon (25.7 liter) fuel tank! Plug in a Lincoln Electric POWER MIG® 140C or POWER MIG® 180C for wire welding too.

Specifications

Amperage : 50-185 amp
Auxiliary Output Voltage : 120 Volt
Brand : Lincoln Electric
Category : Engine Drive Welding Systems
Compliance : CSA Certified
Continuous Generator Power : 5200 watt
Control Type : Continuous
Controller : Mechanical
Country Of Origin : United States
Electrode Diameter : 4 mm
Engine Model : Kohler CH440
Engine Type : Air-Cooled
Frame Diameter : 1-1/4 in
Frequency : 60 Hz
Fuel Consumption : 0.2 gal/hour
Fuel Type : Gasoline
Height : 25.6 in
Horsepower : 14 HP
Ignition Type : Electric Start With Recoil
Jumper Terminals : No
Length : 31.5 in
Maximum Generator Power : 5,700 watt
Maximum Open Circuit Voltage : 80 volt
Maximum Output : 150 Amp
MUFFLER : Combination Muffler/Spark Arrestor
Number of Cylinders : 1
Oil Capacity : 1.1 liter
Output Mode : CC
Polarity : DC
Receptacle Type : NEMA 5-20R
Series : Kohler® CH440
Sound Level : 103.3 db
Tank Capacity : 25.7 liter
VRD : No
Weight : 134 kg
Welding Controls : Reactor
Width : 21.8 in
Work Clamp Included : No
