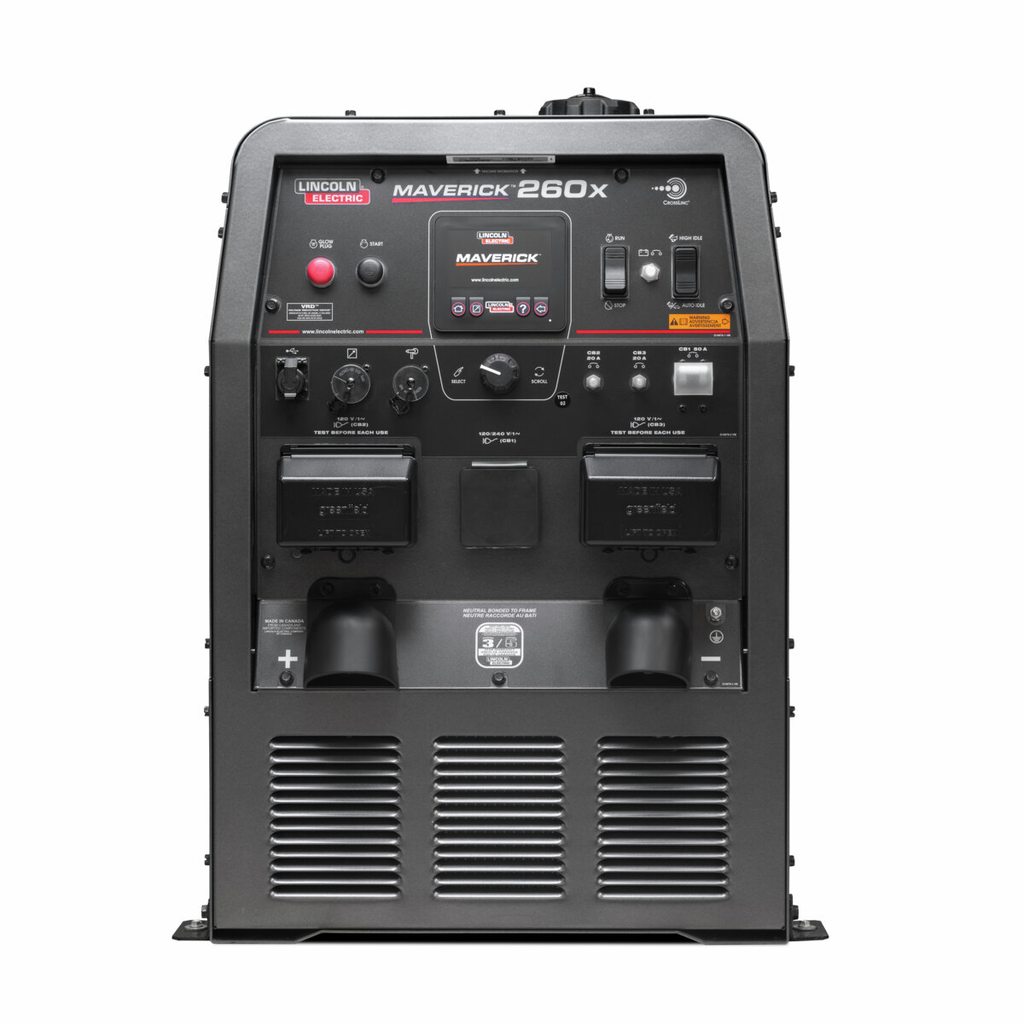

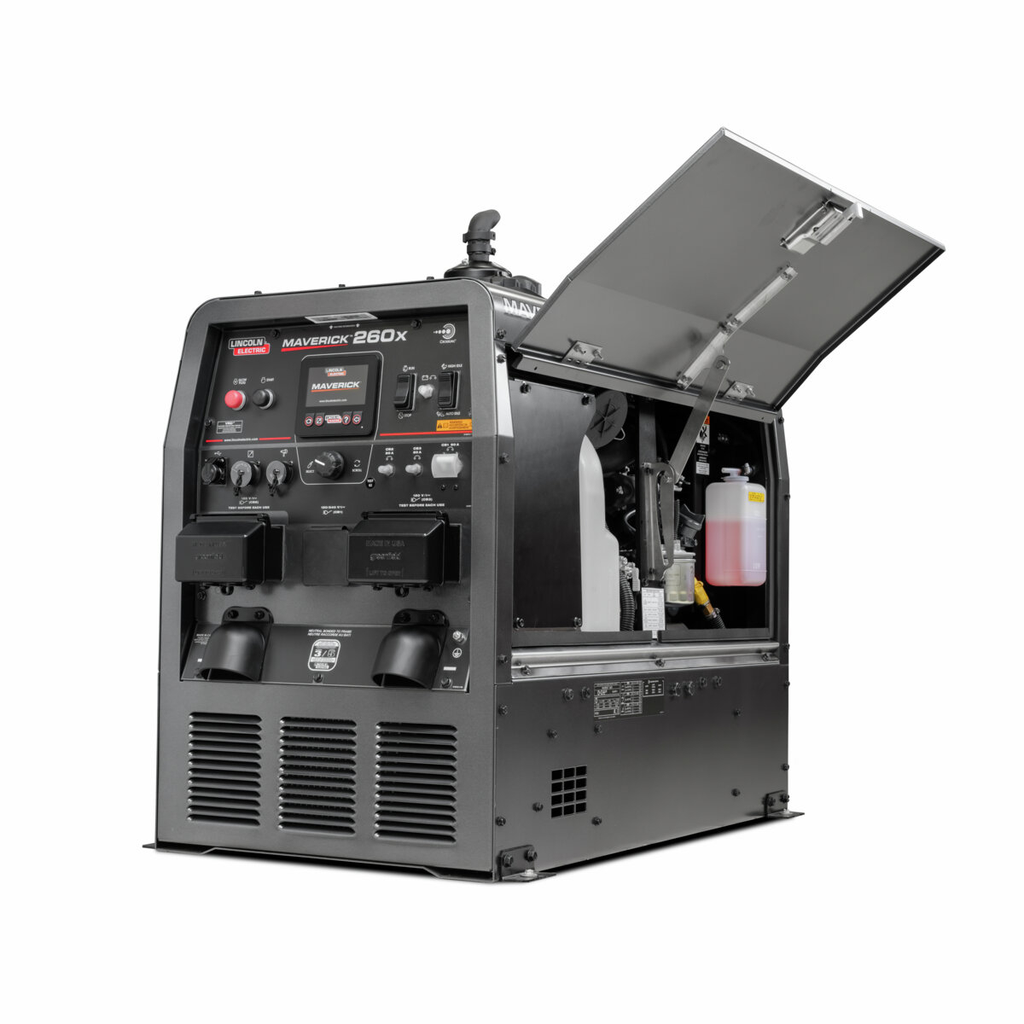

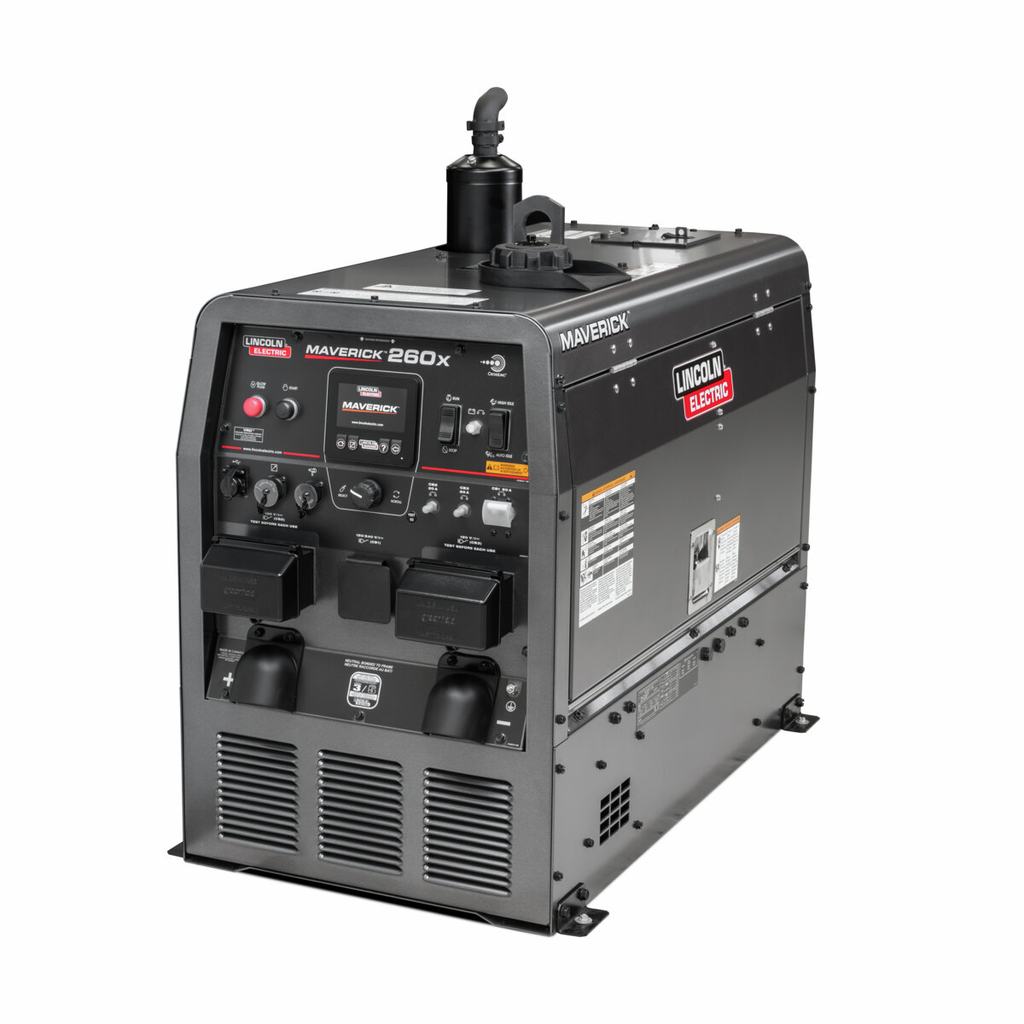

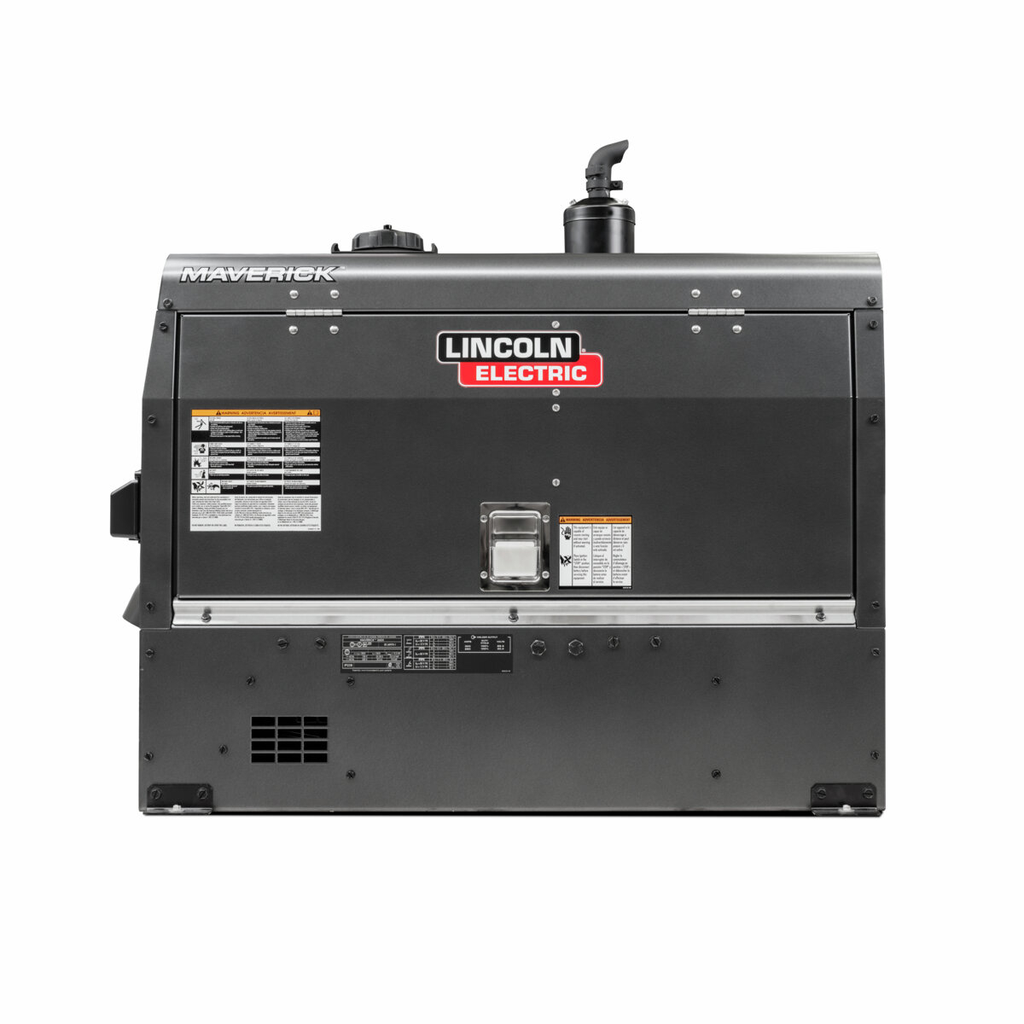

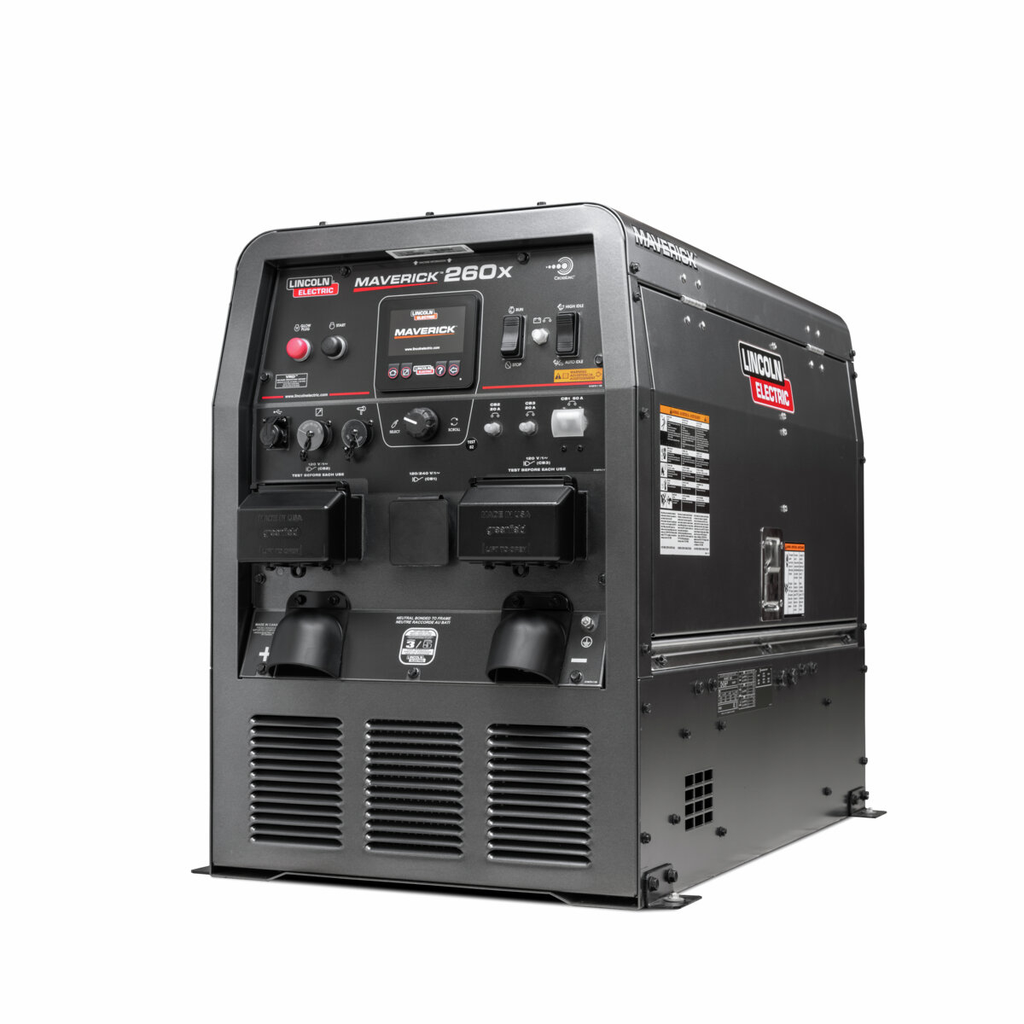

Maverick® 260X (Kubota®)

Locations: In Stock Call for Availability

Item Code: LNCK5272-1

Category Engine Drive Welding Systems

Description

A compact, high speed, diesel engine-driven welder/generator capable of advanced DC multi-purpose welding. The machine features 120/240 VAC single phase auxiliary power, a user interface screen for advanced features, and patented CrossLinc® and Chopper Technology®. Powered by a 16.8 hp Kubota® Z602 diesel engine.

Specifications

Arrester : Optional
Auxiliary Output Type Phase : 1
Auxiliary Output Voltage : 120 Volt
Brand : Lincoln Electric
Case Type : Painted
Category : Engine Drive Welding Systems
Communication Technology : CrossLinc
Connector Type : No
Control Type : Continuous
Controller : Mechanical
Coolant Capacity : .74 gal
Cooling System : Water
Country of Origin : Canada
Data Technologies : USB
Emissions Rating : US EPA Tier 4 Final
Engine Block Size : .599 liter
Engine Brand : Kubota
Engine Cylinders : 2
Engine Protections : High Temperature
Engine Specifications : 2
Engine Starting : Auto-Stop/Start
Engine Type : Naturally Aspirated
Equipment : Generator
Equipment Technologies : Auto-Stop/Start
Fuel Consumption : 0.29 gal/hour
Fuel Tank Capacity : 12 gal
Fuel Type : Diesel
Height : 39.25 in
Horsepower : 12.36 kw
IEC Rating : 260 amp
Ingress Protection Rating : IP23
Input Icon : D
Input Style : Engine
Input Voltage : Engine
Jumper Terminals : No
Length : 42.34 in
Low Idle Operating Speed : 2,500
Machining Process : Flux-Cored Gas-Shielded
Maximum OCV : 80
Maximum Output : 300-399
Maximum Rating : 300 Amp
Motor Type : Naturally Aspirated
Number of Control Knobs : 1
Number of Pins : 6
Oil Capacity : 2.5 liter
Open Circuit Voltage : 80
Operating Speed : 3600
Output : CC/CV
Output Current : DC
Output Frequency : 60 Hz
Output Meters : Screen
Output Mode : CC
Polarity : DC
Rated Gouging Carbon Diameter : 3/16 in
Receptacle Type : NEMA 14-50R
Remote Control Type : CrossLinc
Sound Rating : 77.1 db
Temperature Rating : 40 deg C
User Interface Type : Display Screen
VRD : Yes
Warranty : 3 Year
Warranty Length : 3 yrs
Weight : 620 lbs
Welding Controls : Chopper
Welding Mode : Arc Gouging
Welding Thechnology : Chopper
Width : 21.25 in
